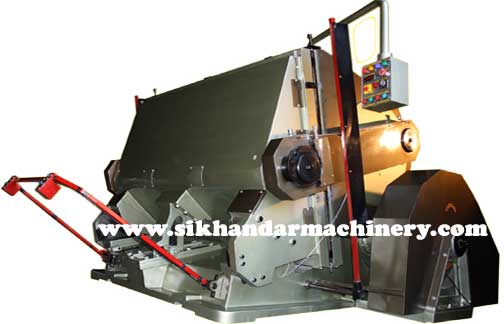

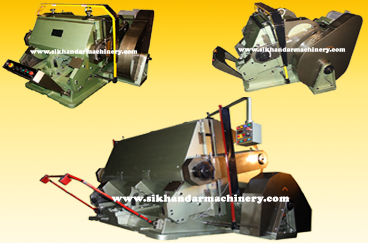

SIKHANDAR MACHINERY CO. offers a range of Die Cutting Creasing Punching Platen Press Machines, Clam shell Platen Press, Hot Foil Stamping attatchments for hot foil printers & industry.The Machines are fitted with Electro magnetic Clutches & brakes with dwell timer arrangements.With the steel rule dies made to cut & crease & give a shape to sheet of paper or corrugated sheet, The Machine is used to make any type of packaging boxes.The main purpose of the Machine is to cut, emboss & texturize the materials such as paper, thin metal(soft), sponge, polyfoam, leather, foil, poster board, fabric, mat board, wall paper, rubber used in rubber stamps, corrugated sheets.The tedius task of cutting letters, numbers & shapes again & again with perfect shape and accuracy is done by this machine.The Machine is also used for stationery, greeting, wedding, scrapbooks & invitation cards.
|
| |
|
TECHNICAL SPECIFICATION
|
| SIZE INSIDE CHASES |
PLATEN SIZE |
SPEED PER HOUR |
POWER REQUIRED |
WEIGHT APPROXIMATE |
AREA REQUIRED |
| 20" x 26" |
23" x 29" |
1800 |
3 H.P. |
29 Qtls. |
62" x 53" |
| 22" x 32" |
25" x 35" |
1600 |
3 H.P. |
34 Qtls. |
68" x 56" |
| 25" x 37" |
28" x 40" |
1400 |
5 H.P. |
40 Qts. |
72" x 63" |
| 32" x 42" |
36" x 46" |
1200 |
7.5 H.P. |
50 Qtls. |
74" x 72" |
| 36" x 50" |
40" x 54" |
1100 |
7.5 H.P. |
65 Qtls. |
80" x 82" |
| 42" x 62" |
46" x 66" |
900 |
10 H.P. |
95 Qtls. |
95" x 100" |
| 52" x 72" |
56" x 76" |
800 |
15 H.P. |
135 Qtls. |
100" x 110" |
|
|
|
|

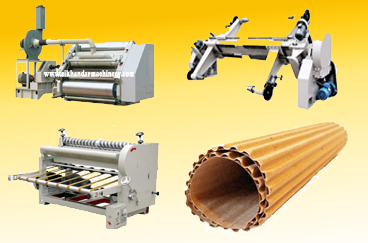

| Corrugated
Board & Box Making Machines |
| We are offering wide variety of corrugated board machine. There is the list of machine which we are offering. |
| VERTICAL
TYPE SINGLE FACE PAPER CORRUGATING MACHINE |
|
|
Single face paper corrugating machine. Bush mounted for manufacturing 2 ply corrugated board, simple to operate with manual loading twin shaft reel stand.
| Size (in inches) | Power (HP) | Heating Load (KW) | Max. Output (Rft/Min.) | | 32 | 3 | 18 | 75 |
| 42 |
3 | 21.5 | 75 |
| 45 |
5 | 24 | 75 |
| 52 |
5 | 27 | 75 |
| 62 |
7.5 |
31.5 |
75 |
|
| |
| OBLIQUE
TYPE SINGLE FACE PAPER CORRUGATING MACHINE |
|
|
For Manufacturing 2 Ply Corrugated Board.
| Size (in inches) |
Power (HP) |
Heating Load (KW) |
Max. Output (Rft/Min.) |
| 42 |
5 |
28.5 |
120 |
| 45 |
5 |
30.5 |
120 |
| 52 |
7 |
34.5 |
120 |
| 62 |
10.5 |
40.0 |
120 |
|
| |
|
|
|
|

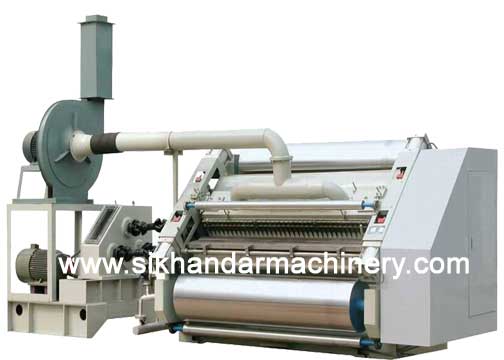

| HIGH SPEED CORRUGATION MACHINE |
| The Fingerless
Type Single Facer Machine range has an exceptional
design that makes it strong and durable.We offer high
quality Fingerless Single Facer Machine widely used
for the manufacturing of 2 Ply Paper Corrugated Board.
It ensures a smooth production of quality board. |
|
|
|
- Design Speed : 80m / min
- Effective width : 1400mm -
2200mm
- Corrugated roller : 280mm Dia
- Drive reducer box with oil
immersed type lubricating to reduce noise keep
running stable adopt transmission separate power.
- Corrugating roller pressure
roller and glue roller by pneumatic adjustment.
- Bearing of corrugated and pressure
roller adopt high temperature lubricate grease.
- Glue parts auto supply glue
circularly.
- The upper-lower corrugating
roller are made of 52CrMo high quality alloy steel
after heat-treatment. The hardness HRC58°-60°
the surface be grinded.
- The glue part surface are treated
by special mesh and chrome plated.
- Motorized or manual glue width
dividing to match the paper width.
- Glue part can be running
independently or non-independently while stopped
Adopt main motor frequency conversion control.
|
|
| |
| DUAL
PROFILE SINGLE FACE PAPER
CORRUGATING MACHINE |
|
|
Suitable
for converting paper
into corrugated 2ply
rolls. The machine
is fitted with two
set of flute rolls,
with inter changing
concept so that you
can operate the next
roll 10 minute time
and self loading reel
stand with reel shaft.
| Size |
42
"
|
45"
|
52
"
|
62
"
|
| Heating
Load |
21
KW
|
24
KW
|
27
KW
|
33
KW
|
| Power |
5
HP
|
5
HP
|
7.5
HP
|
10
HP
|
|
Output as per
specification
in 100 ft, 120
ft, 135 ft &
150 ft per min |
|
|
|

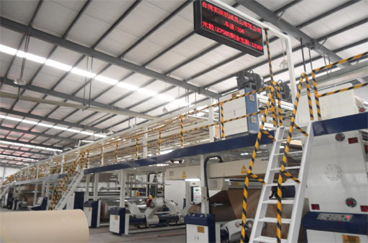

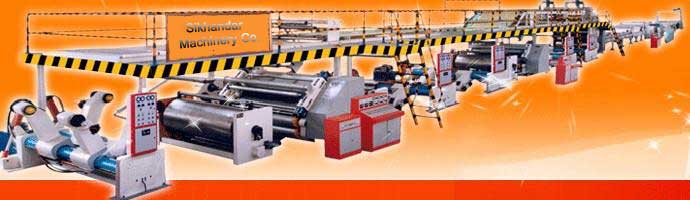

| 3
/ 5 Ply Automatic Corrugation Plant |
| For
Corrugators, who want superior quality boards
and higher production, on line 3/5 ply corrugated
board making plants is the only solution. This
on line plant is ideal solution for achieving
higher production capacity and superior board
quality. Reduces production cost manifold. |
|
|
|
SPECIFICATION
5
ply corrugated box making plant
- High
speed bearing mounted corrugation Machine
with variable speed drive- 2 nos.
- Drum
type heaters - 4 nos.
- Self
loading reel stand- 5 nos.
- Triplex
heating unit before gluing
- On
line duplex pasting unit
- Heating
cooling and drying chamber (consist of fourteen
hot plates)
- Heavy
duty pull unit
- On
line creasing and slitting unit
- Heavy
duty cut off unit
3
ply corrugated box making plant
- High
speed bearing mounted corrugation Machine
with variable speed drive
- Drum
type heaters - 2 nos.
- Self
loading reel stand- 3 nos.
- Duplex
heating unit before gluing
- On
line simplex pasting unit
- Heating
cooling and drying chamber (consist of nine
hot plates)
- Heavy
duty pull unit
- On
line creasing and slitting unit
- Heavy
duty cut off unit The plants above include
complete fabrication and synchronization
of all machinestogether.
- Overhead
bridge and conveyor take up belts. Motorized
web adjustment unit, Gangway and stairs.
|
|
|
|
