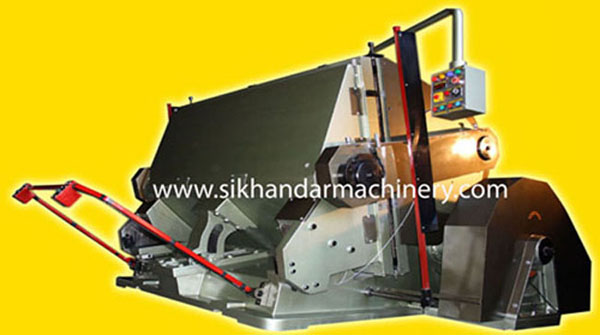

DetailsSIKHANDAR MACHINERY CO. offers a range of Die Cutting Creasing Punching Platen Press Machines, Clam shell Platen Press, Hot Foil Stamping attatchments for hot foil printers & industry.The Machines are fitted with Electro magnetic Clutches & brakes with dwell timer arrangements.With the steel rule dies made to cut & crease & give a shape to sheet of paper or corrugated sheet, The Machine is used to make any type of packaging boxes.The main purpose of the Machine is to cut, emboss & texturize the materials such as paper, thin metal(soft), sponge, polyfoam, leather, foil, poster board, fabric, mat board, wall paper, rubber used in rubber stamps, corrugated sheets.The tedius task of cutting letters, numbers & shapes again & again with perfect shape and accuracy is done by this machine.The Machine is also used for stationery, greeting, wedding, scrapbooks & invitation cards.
| TECHNICAL SPECIFICATION |
| SIZE INSIDE CHASES |
PLATEN SIZE |
SPEED PER HOUR |
POWER REQUIRED |
WEIGHT APPROXIMATE |
AREA REQUIRED |
| 20" x 26" |
23" x 29" |
1800 |
3 H.P. |
29 Qtls. |
62" x 53" |
| 22" x 32" |
25" x 35" |
1600 |
3 H.P. |
34 Qtls. |
68" x 56" |
| 25" x 37" |
28" x 40" |
1400 |
5 H.P. |
40 Qts. |
72" x 63" |
| 32" x 42" |
36" x 46" |
1200 |
7.5 H.P. |
50 Qtls. |
74" x 72" |
| 36" x 50" |
40" x 54" |
1100 |
7.5 H.P. |
65 Qtls. |
80" x 82" |
| 42" x 62" |
46" x 66" |
900 |
10 H.P. |
95 Qtls. |
95" x 100" |
| 52" x 72" |
56" x 76" |
800 |
15 H.P. |
135 Qtls. |
100" x 110" |
|
|
|
|
